Electric Surfboard Thruster
Electric Kart Boat Thruster
The WJ Series Electric Water Jet is a compact and lightweight electric water jet propulsion system developed by Kunpeng Power. Based on a mature structural design and long-term market validation, the WJ Series has become one of our most widely adopted solutions. Suitable as a professional electric surfboard thruster and electric kart boat thruster, it is specifically designed for electric surfboards, kart boats and other compact watercraft, offering fast acceleration, stable output and high system reliability. It is an ideal choice for customers seeking a balanced solution between performance, stability and cost efficiency.
Core Advantages
Ultra-Lightweight
Weights only 10kg and can be fully assembled within 30 minutes, maximising your setup efficiency.
2-Second Rapid Response
Low-inertia direct drive enables the jet to reach full thrust within 2 seconds, providing agile and linear acceleration.
Intelligent System Protection
Durability & Anti-Corrosion
Multi-Voltage Compatibility
Compatible with various battery systems, offering high flexibility for custom retrofitting and large-scale applications.
Stable Heat Dissipation
Technical Specifications
| Model | WJ15 |
|---|---|
| Energy Type | Electric |
| Voltage Range | DC65V-DC90V |
| Rated Current | 200 A |
| Rated Power | 15 KW |
| Gasoline Equivalent | 20 HP |
| Rated Speed | 7500 rpm |
| Control System | Throttle Lever / Throttle Pedal |
| Communication | 485 / CAN / buletooth |
| Operating Env. / Storage Env. | 20℃ ~ 50℃ (68℉ ~ 122℉) |
| Cooling Method | Water Cooling |
| Ingress Protection (IP) | IP67 |
| Weight | 11.68 KG |

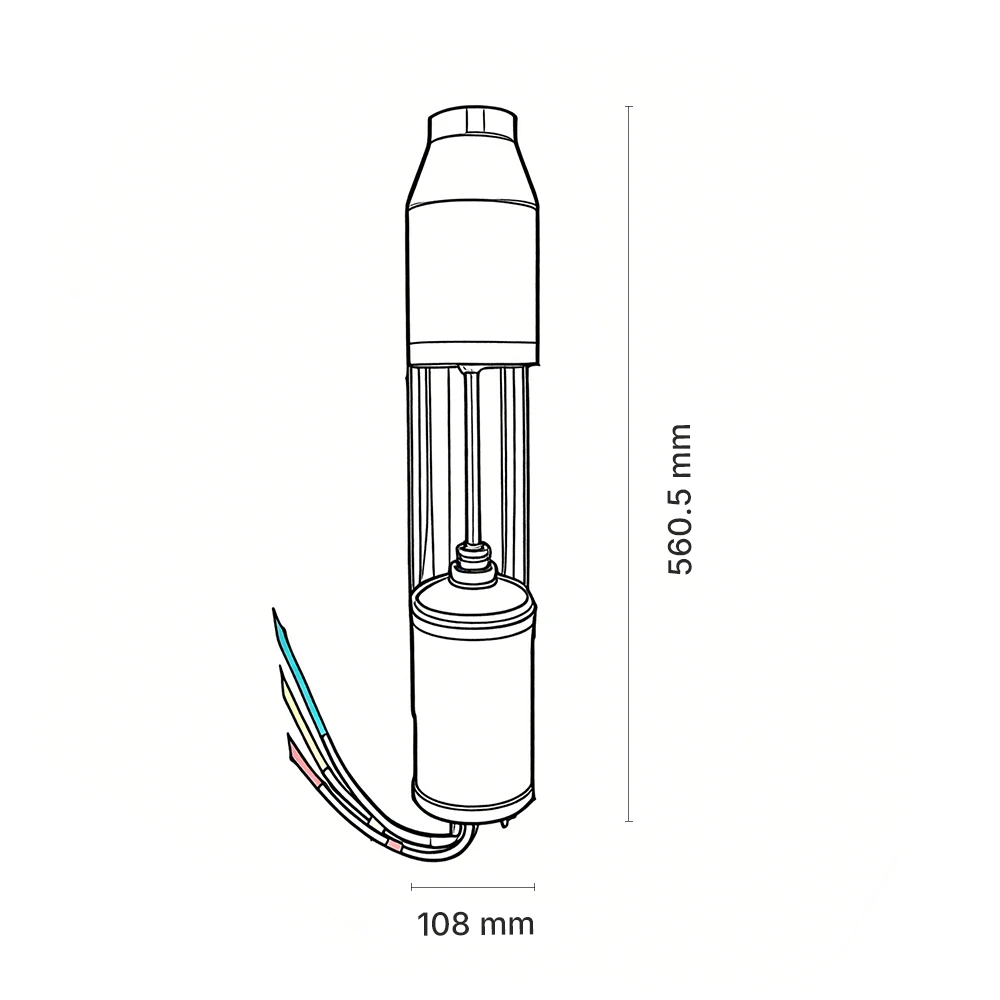

| Dimensions(Length * Diameter) | 560.5 X 108(mm） |
Matching Battery Specs
| Battery Model | L7273 |
|---|---|
| Battery Type | NMC Lithium Battery |
| Nominal Capacity | 73 AH |
| Rated Energy | 5.3 KWH |
| Operating Voltage Range | DC65V-DC84V |
| Continuous Discharge Current | 250 A |
| Dimensions (WHL) | 365mm X 135mm X 410mm |
| Charger Specifications | 84V 15A |
| Battery Weight | 28 kg |
| Charging Time | 5 H |
