WP Series Electric Water Jet
The 2026-launched WP Series is an upgraded waterjet propulsion lineup, optimized for efficiency, noise reduction, corrosion resistance and reliability. With improved hydraulic structure, materials and manufacturing processes, it delivers better performance and longer service life for marine environments—ideal for electric surfboards, jet boats and kart boats, offering longer range, lower energy consumption and stable output for high-frequency use.
Core Advantages
High Propulsion Efficiency
Optimized hydraulic channel and redesigned impeller boost thrust per unit energy, extending range with the same battery capacity.
Corrosion Resistance
IP67 rated with seawater-grade aluminum alloy housing, offering impact resistance and stable operation in long-term marine environments.
Lightweight Design
Simplified assembly inherits WJ Series’ advantages, enabling full installation in approximately 30 minutes.
Intelligent System Protection
Multi-layer safety protocols cover RPM, current, communication and battery health monitoring.
Multi-Voltage Compatibility
Compatible with various battery systems, providing flexibility for custom retrofitting and large-scale applications.
Reduced Noise Output
13% quieter than the previous generation, enhancing comfort for recreational users.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WP15 |
| Energy Type | Electric |
| Voltage Range | DC65V-DC90V |
| Rated Current | 200 A |
| Rated Power | 15 KW |
| Gasoline Equivalent | 20 HP |
| Rated Speed | 7500 rpm |
| Control System | Throttle Lever / Throttle Pedal |
| Communication | 485 / CAN / Bluetooth |
| Operating/Storage Temp | 20℃ ~ 50℃ (68℉ ~ 122℉) |
| Cooling Method | Water Cooling |
| IP Rating | IP67 |
| Weight | 13 KG |
| Dimensions (Width × Height × Length) | 172 × 135 × 800 mm |

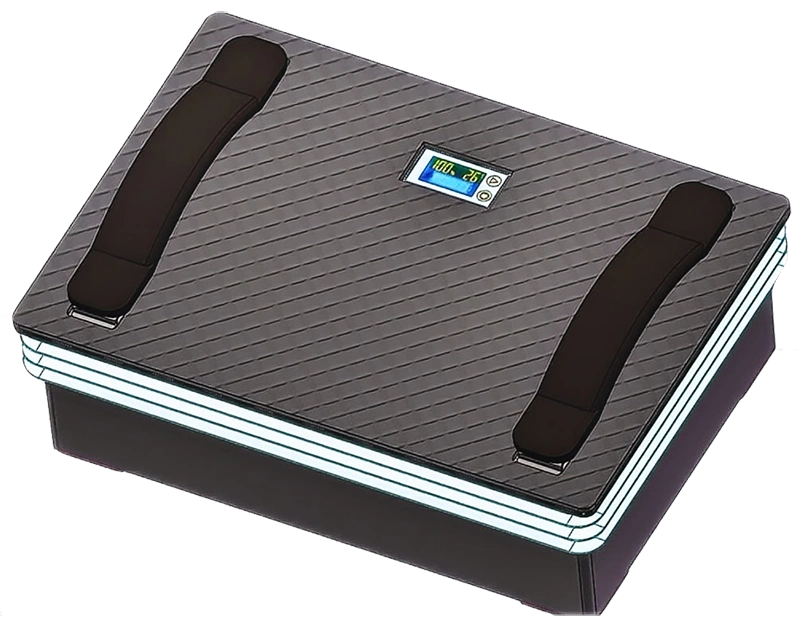

Matching Battery Specs
| Parameter | Specification |
|---|---|
| Battery Model | L7273 |
| Battery Type | NMC Lithium Battery |
| Nominal Capacity | 73 AH |
| Rated Energy | 5.3 KWH |
| Operating Voltage Range | DC65V-DC84V |
| Continuous Discharge Current | 250 A |
| Dimensions (W×H×L) | 365 × 135 × 410 mm |
| Charger Specifications | 84V 15A |
| Battery Weight | 28 kg |
| Charging Time | 5 H |
