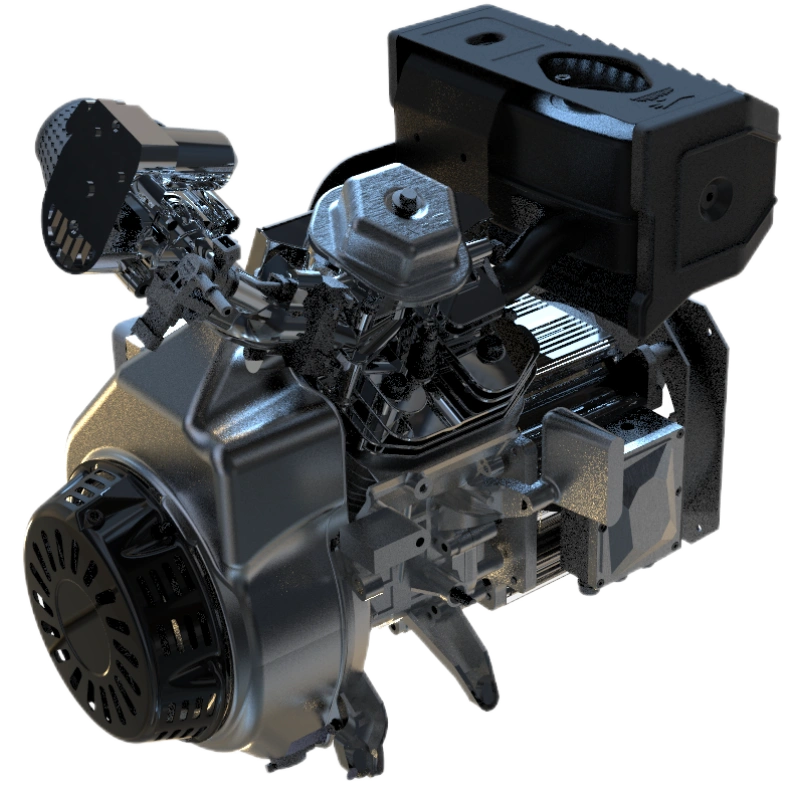

RE-20 Marine Range Extender
A dedicated range extension solution for electric propulsion systems. It boosts cruising range without altering the original propulsion structure, retaining electric drive advantages while solving range limitations. Ideal for long-duration operations, limited charging access, or variable conditions—offering gasoline and methanol versions to meet diverse needs.
Technical Specifications
| Parameter | KPP70-G075-DGCY | KPP70-G075-DGJC |
|---|---|---|
| Fuel Type | Diesel/LNG | Methanol |
| Rated/Peak Power (KW) | 7.5/10 | 7.5/10 |
| Engine Type | Single Cylinder Engine | Single Cylinder Engine |
| Voltage Platform (V DC) | 48-90 | 48-90 |
| Cooling Method | Air-cooled | Air-cooled |
| Rated Speed (rpm) | 3200 | 3200 |
| Overall Dimensions (mm) | 600×560×380 | 600×560×380 |
| Weight (KG) | 62 | 62 |

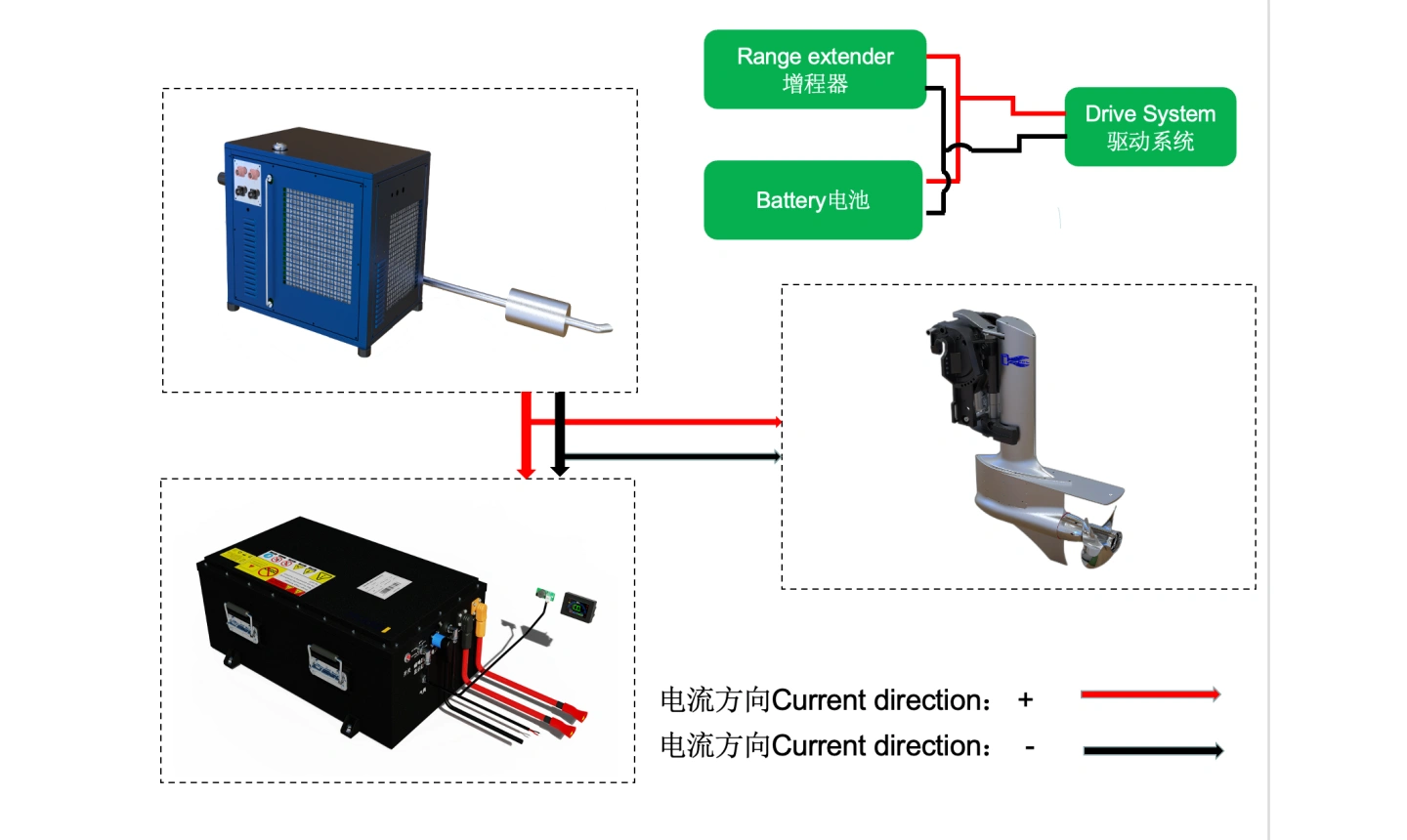

How It Works
When the battery drops below the preset threshold, the range extender starts automatically. Its built-in generator converts fuel energy into electricity, supplying it in real time to the battery pack and electric motor. The vessel maintains electric propulsion throughout, with the RE Series ensuring consistent energy support.
Core Advantages
Zero-Modification Integration
No changes required to the motor or hull—seamless integration with existing electric propulsion systems.
Stable Energy Supply
Reliable electrical output for long-duration operations and variable load conditions.
System-Level Reliability
Designed as part of the electric propulsion ecosystem, ensuring stable coordination with batteries and motors.
Fuel Flexibility
Gasoline/LNG or methanol versions available, adapting to different scenarios and regulatory requirements.
